Hardox® 600
Hardox® 600, with a nominal hardness of 600 HBW, is an extra-hard wear resistant steel that can be cut and welded. It is designed for use in high-performing wear parts in harsh wear environments.
Hardox® 600 for superior wear resistance
With Hardox® 600, you don’t have to sacrifice wear resistance for impact strength. Thanks to its properties, this steel can withstand impacts that often lead to fracture or destruction of other wear parts made in white iron chromium castings, manganese castings, bimetals or ceramics. Hardox® 600 has an impact toughness that can make it more durable than those materials. It also successfully fights sliding wear. Want to learn if Hardox® 600 is right for your particular application?
Why Hardox® 600?
- Makes a good alternative to conventional AR steel or Hardox® steel with lower hardness grades, manganese steel castings or ceramics
- Parts made with this high-strength and hard steel are strong and durable
- Get thinner yet higher-performing wear liner packages
- A long and predictable service life leads to lower maintenance costs and increases productivity
- Long-lasting and productive equipment has environmental benefits, since it uses less steel and energy over time
- Widely available plates, shorter delivery time compared to manganese steel castings
- Workshop benefits: Comes already through-hardened, is machineable and weldable, no preheating needed, standard workshop methods can be used
- Spare parts can be quickly and easily fabricated
Typical applications for Hardox® 600

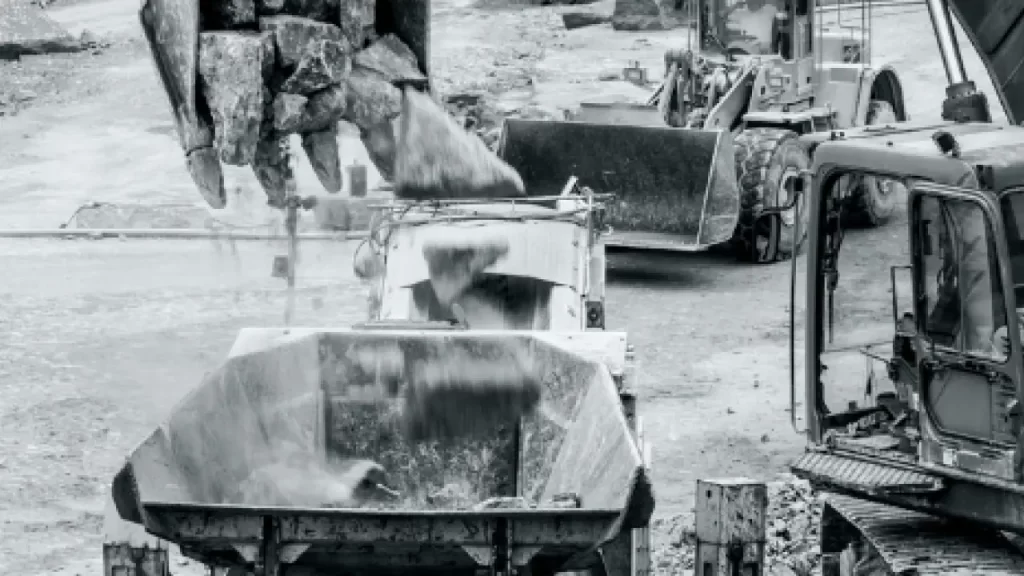

- Mining, quarrying and earthmoving utilize Hardox® 600 for wear liners exposed to sliding wear, chute liners, conveyor skirt boards, screens, silo and pan feeder liners.
- Hardox® 600 is used for industrial process equipment such as crusher knives, hammers, discs, blades, jaw crusher cheek plates, liner plates, deflector plates, shredder knives, cone crushers, ball mill liners, concrete molds, vertical and horizontal shaft impactor discs and liners, and knives for flaker rings.
- Cement, concrete, steel and energy plants use chutes, hopper liners, vertical rolling mill liners, feeder liners and screens, baffle plates, split scrapers and guide vanes in Hardox® 600.
- Forestry equipment in Hardox® 600 is for example harvester feed rollers, log washer paddles and shredder knives.
Extra-hard steel that works longer for your equipment
A little extra hardness can go a long way. At the high end on the hardness scale for our Hardox® range of grades, Hardox® 600 can give your equipment the extra edge in service life in applications that take a beating. Hardox® 600 has a yield strength around 1650 MPa, much higher than for standard structural steels like S355 steel, which has a yield strength of about 355 MPa.
If you upgrade from a lower Hardox® grade like Hardox® 500, you can gain up to a 50% longer equipment service life. When upgrading from a 400 HBW AR steel, you can get a service life up to 4 times longer. If you do opt for using a lower-grade material, remember that you might be looking at higher production, replacement and downtime costs in the long run.

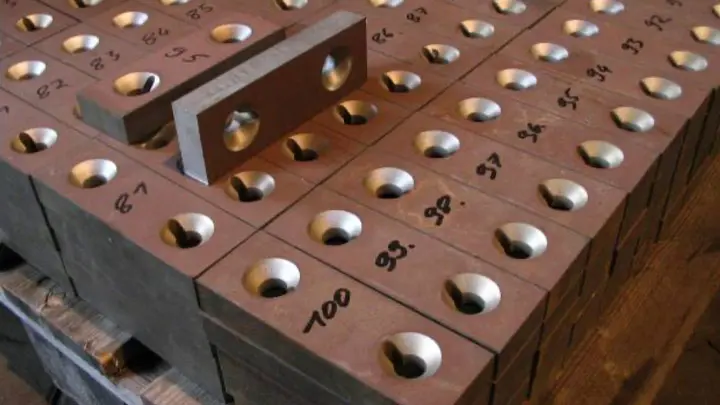

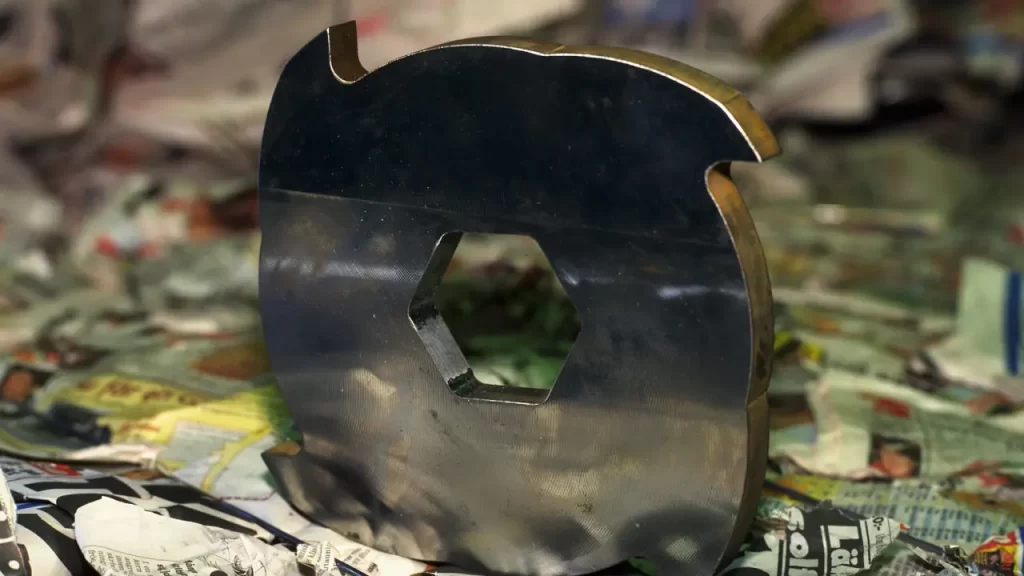

Prismatic knives
Used in recycling plastic, electronic waste and aluminium, prismatic knives in Hardox® 600 will extend service life. The toughness of Hardox® 600 will reduce the risk for chipping compared to tool steel, providing a more reliable solution.

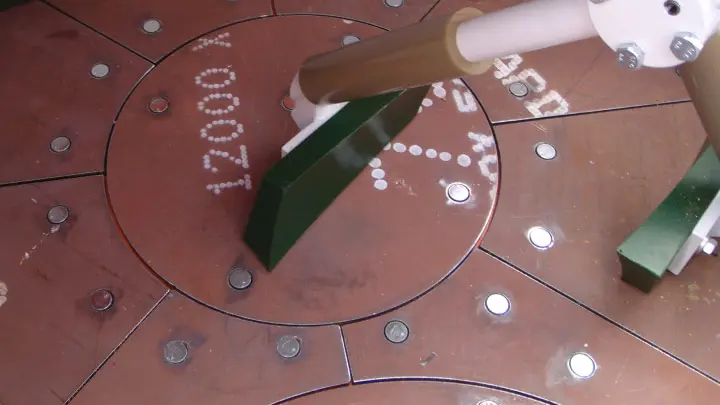

Floor lining in planetary mixers
The high hardness of Hardox® 600 offers very high wear resistance in combination with the possibility to drill, countersink or even stud weld bolts to the steel. This makes Hardox® 600 an easy solution compared to HCWI casted material or chromium carbide solutions.

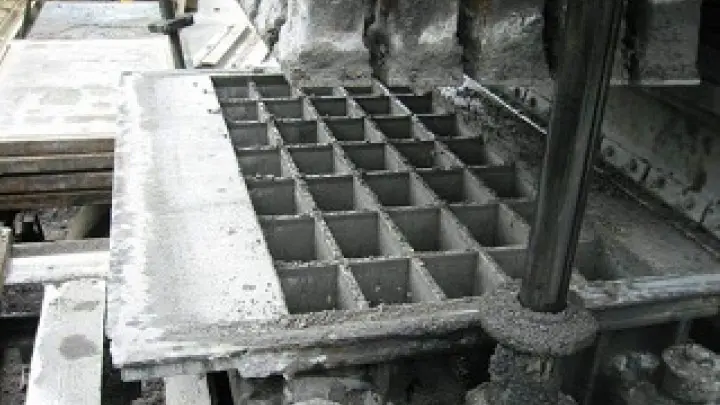

Concrete brick molds
Concrete molds for concrete or terracotta pavers made of Hardox® 600 extend service life many times compared to the previous 500 HBW steel. Extends lifetime from 4-8 weeks to an entire 6-12 months.

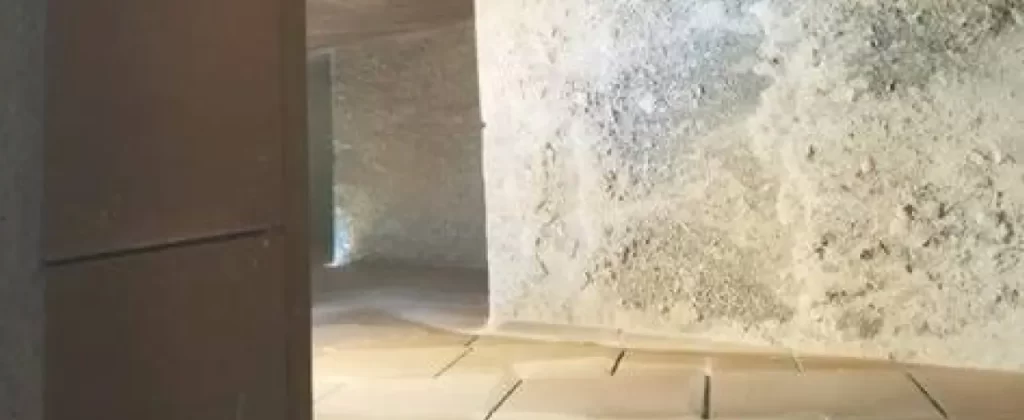

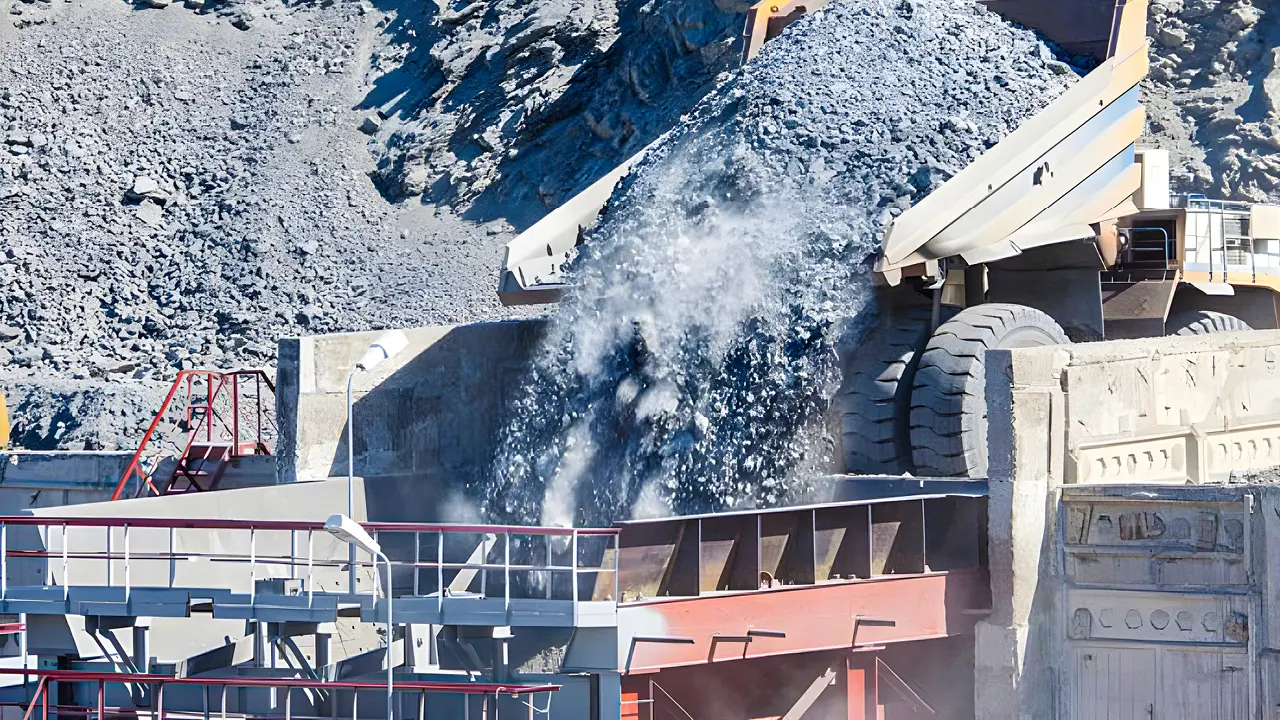

Transfer chutes
A transfer chute with liner plates in Hardox® 600 provides a long service life when moving iron ore and other highly abrasive materials. Compared to an AR 500 steel, Hardox® 600 can double the lifetime.
Dimension Range
Hardox® 600 is available as plate in thicknesses of 6.0 – 65.0 mm and as sheet in thicknesses of 3.0 – 6.0 mm. Hardox® 600 is available in widths up to 2000 mm and lengths up to 14630 mm. Preferred dimensions for the plates are 2000 x 4000 mm. For sheets in thicknesses of 3.0 – 4.5 mm the preferred dimensions are 1250 x 3000, and for sheets in thicknesses between 4.5 – 6.0 mm the preferred dimensions are 1500 x 3000 mm. Other dimensions on request. More detailed information on dimensions is provided in the dimension program.
Mechanical Properties
|
Product |
Thickness
(mm) |
Hardness 1)
(HBW) |
|---|---|---|
|
Hardox® 600 sheet |
3.0 – 6.0 |
570 – 640 |
|
Hardox® 600 plate |
6.0 – 51.0 |
570 – 640 |
|
Hardox® 600 plate |
51.1 – 65.0 |
550 – 640 |
1) Brinell hardness, HBW, according to EN ISO 6506-1, on a milled surface 0.5 – 3 mm below surface. At least one test specimen per heat and 40 tons. The nominal thickness of supplied plates will not deviate more than +/- 15 mm from the thickness of the test specimen used for hardness testing. For sheet the Brinell hardness test is according to EN ISO 6506-1 on each heat treatment individual/coil. Hardness is measured on a milled surface 0.3 – 2 mm below surface.
Hardox® wear plate is through-hardened. Minimum core hardness is 90 % of the guaranteed minimum hardness.
Chemical Composition (heat analysis)
Product type | C *) (max %) | Si *) (max %) | Mn*) (max %) | P (max %) | S (max %) | Cr*) (max %) | Ni*) (max %) | Mo*) (max %) | B*) (max %) |
|---|---|---|---|---|---|---|---|---|---|
Sheet | 0.40 | 0.50 | 1.0 | 0.015 | 0.010 | 1.20 | 1.50 | 0.60 | — |
Plate | 0.47 | 0.70 | 1.50 | 0.015 | 0.010 | 1.20 | 2.50 | 0.70 | 0.005 |
Carbon Equivalent CET(CEV)
|
Product type |
Sheet |
Plate |
Plate |
|---|---|---|---|
|
Thickness (mm) |
3.0 – 6.0 |
6.0 – 35.0 |
35.1 – 65.0 |
|
Max CET(CEV) |
0.52 (0.72) |
0.57 (0.69) |
0.61 (0.87) |
|
Typ CET(CEV) |
0.48 (0.64) |
0.55 (0.66) |
0.59 (0.85) |
