Strenx® 900 product group
Strenx® 900 is a group of high-strength structural steel grades with yield strengths between 830 and 900 MPa (120-130 ksi) depending on thickness, making them an excellent choice for transport, lifting, agriculture and other load-bearing applications.
SUITABLE APPLICATIONS
Advanced load-bearing structures in transportation, lifting and agriculture
TYPE OF PRODUCTS
Hot rolled plate and sheet
THICKNESS RANGE
2-120 mm (0.079”-4.724”)
High-strength steel grades for high-performing structural applications
STRENX® 900 E Superior toughness
Suitable for strong and light chassis, cranes, agriculture equipment and other load-bearing structures in a wide dimension range.
Toughness: 27 J at -40°C ( 20 ft-lb at -40°F)
Thickness: 4-120 mm (0.157”-4.724”)
Standard: EN 10025-6 S890QL
Format: Plate
STRENX® 900 F Extreme toughness in cold conditions
Suitable for strong and light chassis, cranes, agriculture equipment and other load-bearing structures, particularly in cold conditions.
Toughness: 27 J at -60 °C (20 ft-lb at -76 °F)
Plate: 4-100 mm (0.157”- 3.937”)
Standard:EN 10025-6 S890QL1
Format: Plate
STRENX® 900 MC Hot rolled steel for cold forming
Excellent thickness accuracy and surface quality for predictable performance in cold forming operations.
Toughness: 27 J at -40°C (20 ft-lb at -40°F)
Thickness: 3-10 mm (0.118”-0.393”)
Standard: EN 10149-2 S900MC
Format: Sheet and coil
STRENX® 900 PLUS Superior bendability
Suitable for strong and light chassis, cranes, agriculture equipment and other load-bearing structures.
Toughness: 27 J at -40°C (20 ft-lb at -40°F)
Thickness: 2-8 mm (0.079”-0.315”)
Standard: EN 10025-6 S890QL
Format: Sheet and coil
Concrete pump manufacturer Betonstar upgraded to Strenx® 900, saved weight and reached longer
“The fact that the pumps weigh less provides many advantages, like less fuel consumption, the possibility of purchasing trucks with a shorter wheelbase, and pouring concrete usingless fuel – and, of course, less fuel is consumed when you drive a lighter truck,” says Erol Yıldız, factory manager at Betonstar.
Made for predictable performance in the workshop
Welding
Strenx® 900 can be welded using any conventional welding method. MAG welding is the most common technique today, since it is very easy to automate for high productivity.
Machining
Strenx® 900 can usually be machined without special equipment. Stable machinery fitted with high-speed steel and carbide tools is recommended when drilling, countersinking, tapping, turning, and milling.
Bending
Free bending and roll bending of Strenx® steel plate and strip can be done using standard bending machinery. Uniform properties, close thickness tolerances and high surface quality ensure a predictable bending process.
Thermal Cutting
The properties and fine surface finish of Strenx® 900 plate and sheet make it perfect for laser cutting. Thermal cutting of hot rolled Strenx® 900 is performed with oxy-fuel flame, plasma and laser.
Mechanical Cutting
Mechanical cutting of Strenx® 900 is best performed with guillotine shears. Consider carefully the settings of the cutting machine. The most important factors are clearance, cutting angle and blade hardness. The plate should be allowed to warm up thoroughly to around +20°C (68° F) before it is cut.

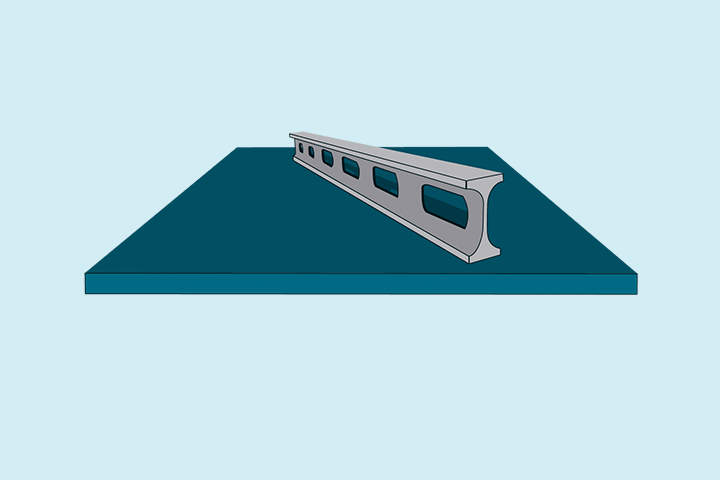

Strenx® Guarantees
Strenx® guarantees include tight thickness tolerances, tight flatness tolerances and bending properties. The tight thickness tolerances enable you to know the weight more precisely. As a result, you can reduce your safety margins. Precise thickness within a plate and between plates makes for safe and predictable performance in the workshop.
Strenx® 900 products and thickness
|
Thickness range [mm] |
||||||
|---|---|---|---|---|---|---|
|
Strenx® 900 Standard Products |
Plate |
Hot rolled
strip |
Cold rolled
strip |
Conform to standard |
Formats |
Typical products manufactured
with Strenx® |
|
Strenx® 900 E |
4-120 |
— |
— |
S890QL in EN 10025-6 Impact test at -40°C |
Plates |
Lifting and load-bearing structures, where strength and weight is critical |
|
Strenx® 900 F |
4-100 |
— |
— |
S890QL1 in EN 10025-6 Impact test at -60°C |
Plates |
Lifting and load-bearing structures, where strength and weight is critical in cold conditions |
|
Strenx® 900 MC |
— |
3-10 |
— |
S900MC in EN 10149-2 Impact test at -40°C |
Sheets & Coils |
Load-bearing structures, where strength and weight is critical |
| Strenx® 900 Plus |
— |
2-8 |
— |
S890QL in EN 10025-6 Impact test at -40°C |
Sheets & Coils |
Lifting and load-bearing structures, where strength and weight is critical |
